Ultra ISC Embedded Amplifier Tension Transducer





The Ultra ISC is a tension transducer that directly outputs a +/- 10 VDC signal. CMC offers an ISC version for all models of our Ultra tension transducers. All Ultra ISC transducers include an Integrated Signal Conditioner (ISC) that is embedded directly in the "Ultra" type tension load cells. This is accomplished by extending the connector housing one inch and inserting a proprietary integrated amplifier designed by CMC.

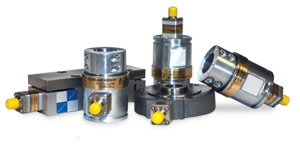

Ultra ISC Tension Transducer

Features

  • Includes an Integrated Signal Conditioner ( ISC )
  • No Additional Amplifier Required
  • Direct +/- 10 VDC Output
  • Local signal conditioning minimizes electrical noise
  • 40:1 tension range
  • Factory preset zero and gain
    0 V = no load, 10 V = tension load cell rating
  • Available in all Ultra Line modes: Cartridge, Slim Cell, UPB, and CLT



Benefits

  • Eliminates hardware costs of a separate amplifier
  • Frees up panel space
  • Reduces the amount of documentation drawings
  • Reduces wiring costs
  • Eliminates amplifier setup and calibration
  • Ability to bring signal directly to local I/O on Network
  • Improved diagnostic and balance capability with tension load cells scaled in controller



Literature

Web Tension Capabilities Brochure

Ultra ISC Embedded Amplifier Tension Transducer Datasheet

Which Load Cell is Right For You?

Instruction Manuals

ULTRA ISC Cartridge Transducer, MAN-70430-0 RevAA


ULTRA ISC Cantilever Transducer, MAN-70445-0 RevAA


ULTRA ISC Slim Cell Transducer, MAN-70434-0 RevAA


ULTRA ISC UPB Transducer, MAN-70436-0 RevAA





CAD Drawing

Refer to the standard Ultra Transducer CAD drawings ( Non-ISC Ultra Transducer) in the Support section of this web site. Consult with the factory for minor difference between the Ultra Transducer dimensions and Ultra ISC Transducer dimensions.



Load Cell Sizing Support

Load Cell Sizing - Cartridge

Load Cell Sizing - CLT

Load Cell Sizing - Slim Cell

Load Cell Sizing - UPB
